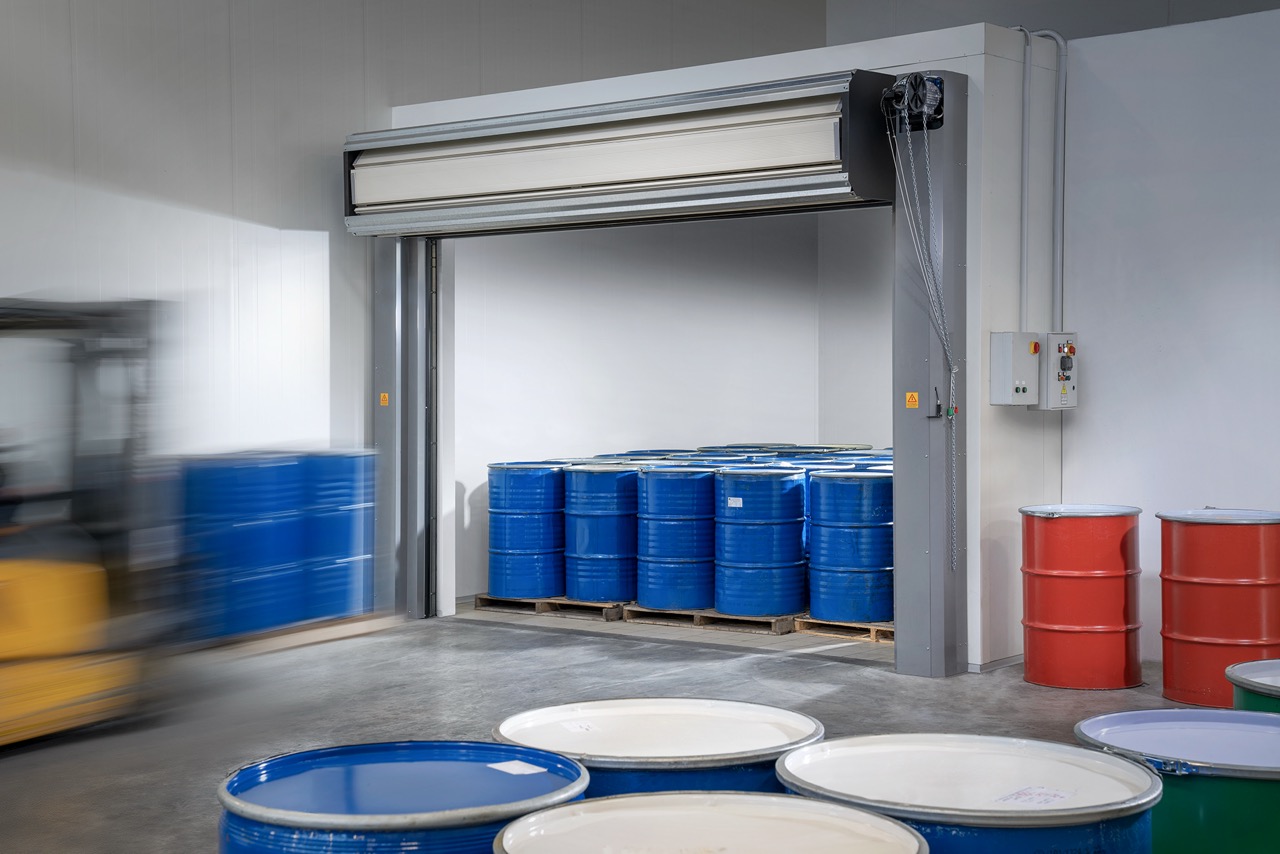

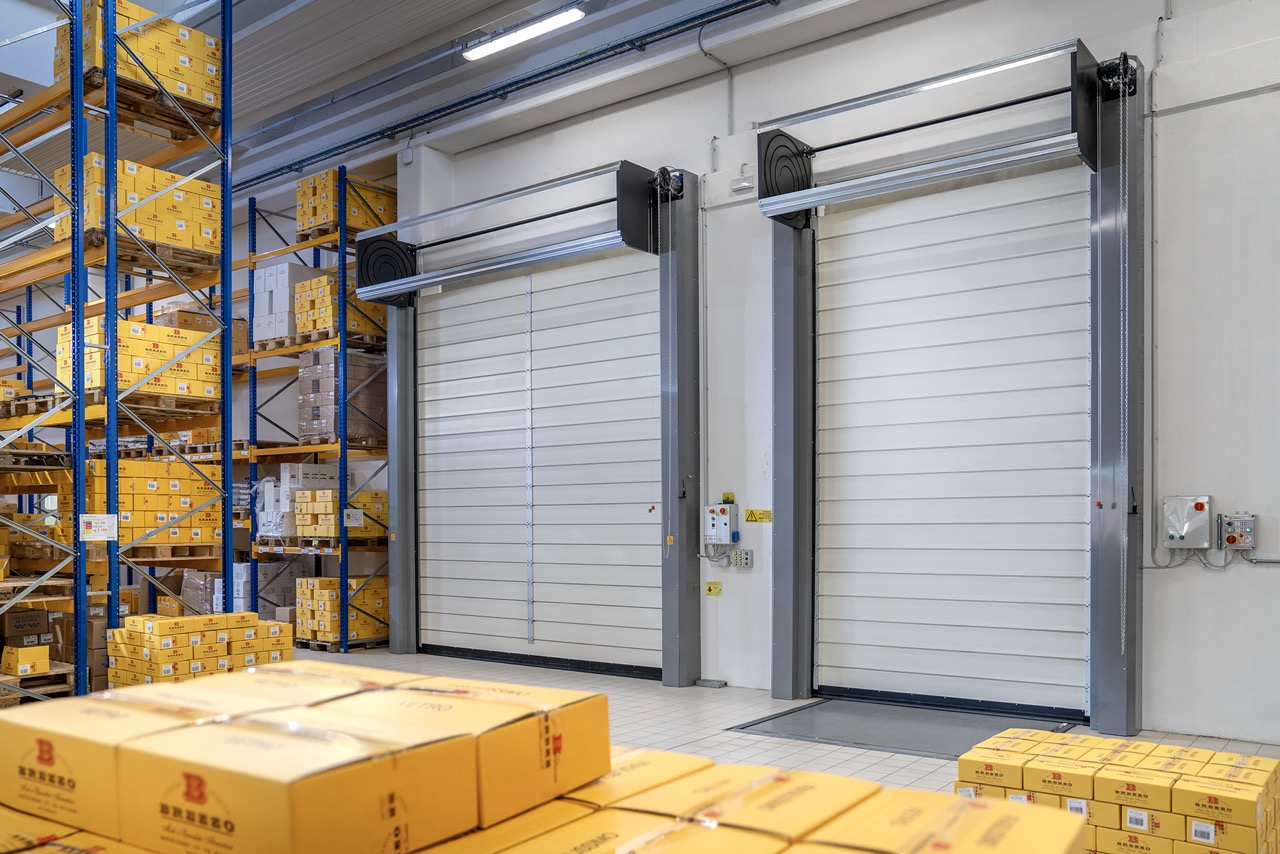

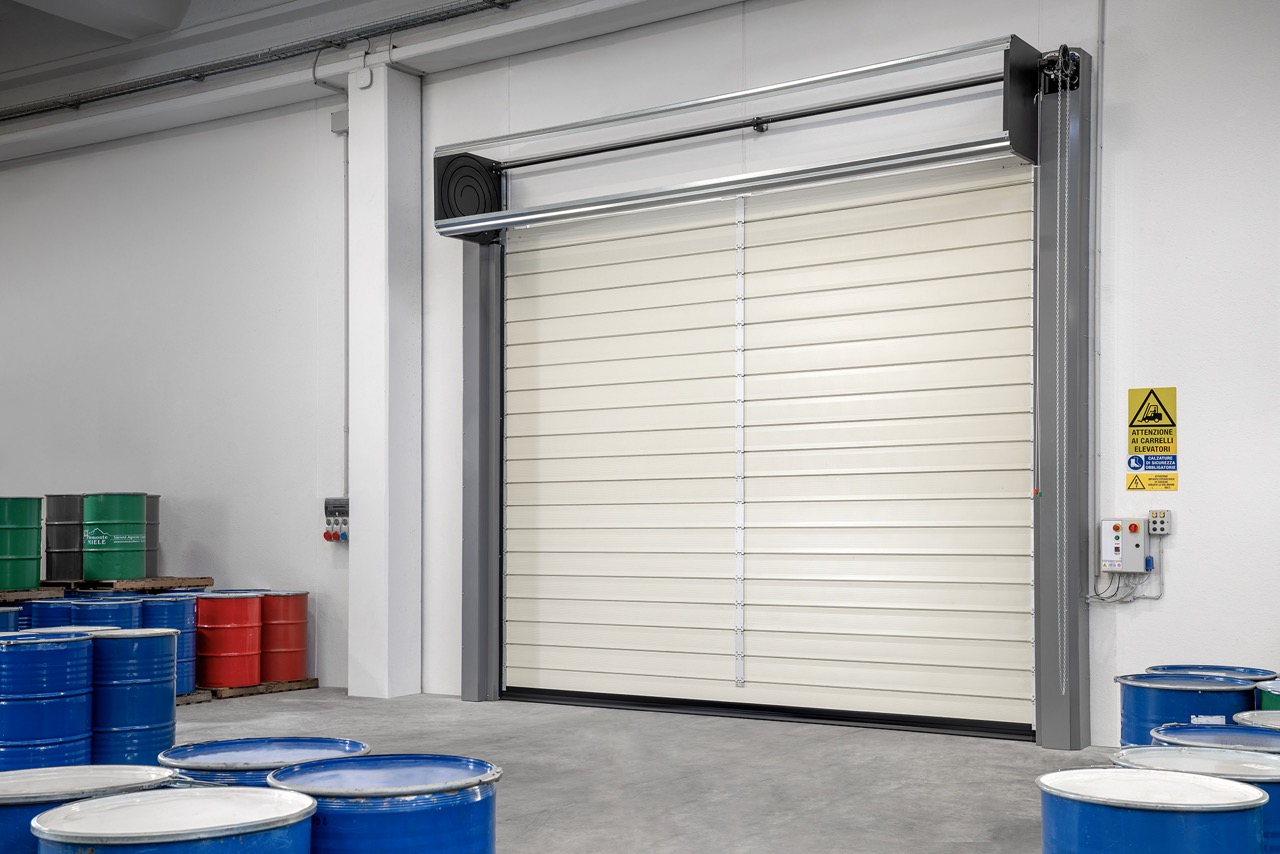

Spiral ISO 50

OPENING SPEED UP TO 1.5 M/S

It is the best-selling model among Thermicroll® insulated roll-up doors, as it delivers outstanding performance in terms of speed, safety, and insulation, combined with a highly attractive design. It is suitable for all types of applications, both indoors and outdoors.

FEATURES & BENEFITS

Inverter-controlled drive
Opening speed: up to 1.5 m/s
Photocell safety barrier
Thermal insulation
Chain drive system (push & pull)
Counterweight balancing system
Manual chain opening
Intrusion resistance in accordance with technical specification DIN/TS 18194:2020: RC2

Category: Senza categoria

Description

Description

Technical Data Sheet

MAXIMUM DIMENSIONS	W 7.000 mmm x H 5.200 mm *
SPEED	Max opening speed Up to 1,5 m/s _____________________ Closing speed Up to 0,5 m/s
CYCLES TEST	3,000,000 cycles with periodic maintenance
WIND RESISTANCE	Standard Class 2 up to Class 4
THERMAL CONDUCTIVITY	~ U = 1,5 W/m2K
ACOUSTICS	22 dB
STRUCTURE	Standard Galvanized steel _____________________ Optional Steel powder-coated in RAL INOX 304 - INOX 316

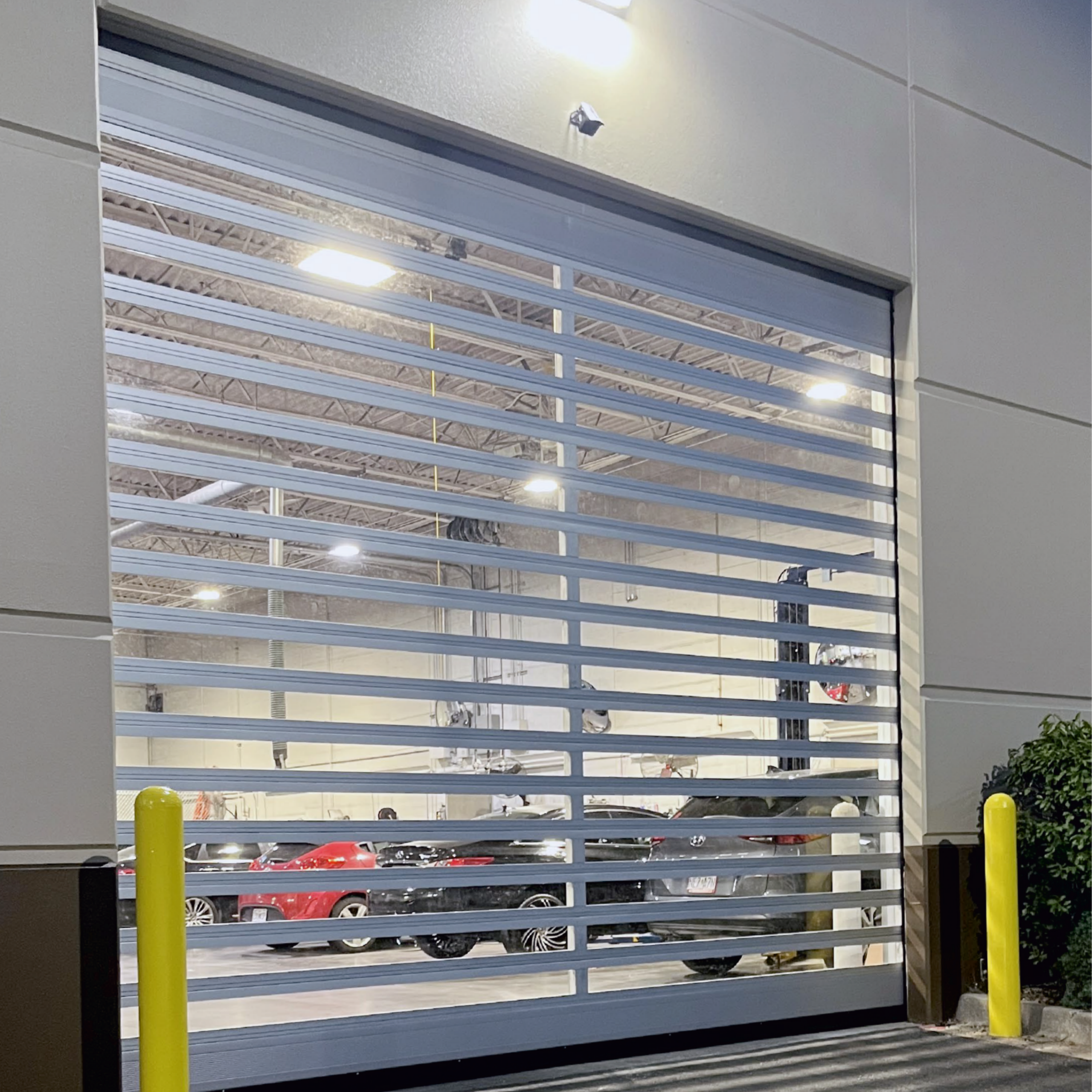

DOOR BLADE 50MM	Optional - INSULATED: powder coated aluminum in RAL - EXTRUDED (trasparent laths / airflow): aluminium OX powder coated aluminum in RAL
SPIRAL - GUIDES	PATENTED, in high density polyethylene PEHD 500000
OPERATION	Duplex chain push - pull
TOP COVER	Standard (Mandatory) clear H < 2500 mm with extracost _____________________ Optional clear H ≥ 2500 mm
CONTROL PANEL	Inverter
POWER SUPPLY	Standard Three-phase 400 V + N + T (16 A) ____________________ Optional Single-phase 230 V (10A)
FREQUENCY	50 / 60 Hz
LIMIT SWITCH	Absolute Encoder
GEAR MOTOR	Motorized asynchronous with 110 V electric brake for intensive high-frequency use
MANUAL OPERATION IN CASE OF POWER FAILURE	Standard Single chain winch _____________________ Optional Single Crank on Motor (at height)
SAFETY DEVICES	Light curtain barrier

Applicable Panel Types

Colours

Standard

SIMIL RAL 9006

Semi standard

SIMIL RAL 3004

SIMIL RAL 7016

SIMIL RAL 9002

SIMIL RAL 9010

SIMIL RAL 5010

SIMIL RAL 7037

SIMIL RAL 9005

WOOD

Available in all colours from the RAL colour chart
